How Does a Declutchable Gear Operator Work?
A declutch gear operator, also known as a declutch-able manual override or a manual handwheel, is a device commonly used with industrial valves and actuators to manually operate the valve when needed, regardless of the automated or electric control system. It provides a means for manual operation in case of power failure or when maintenance or troubleshooting is required, without removing the actuator.
Here’s a general description of how a declutch gear operator works:
- Normal Operation (Clutch Disengaged):
- In the normal operating mode, the gear operator is “declutched” or disengaged from the actuator and valve drive train, allowing the actuator to freely move the valve without interference.
- The automated control system or electric motor drives the actuator, and the declutch gear remains in a disengaged state.
- Manual Operation (Clutch Engaged):
- When manual operation is necessary, such as during power outages or system maintenance, the actuator must first be disconnected from the power source to prevent unwanted accidental operation.
- Next, the operator engages the clutch mechanism. This engagement allows the gear override to engage the actuator and valve drive train and operate the valve open or closed.
- Resume Normal Operation (Clutch Disengaged):
- After manual operation is complete, the operator disengages the clutch mechanism to disconnect from the actuator and valve drive train.
- After disengagement, the actuator can be reconnected to the power source for normal automated function.
![](https://i1.wp.com/www.maxairtech.com/wp-content/uploads/Screenshot-2024-04-22-at-4.11.39 PM.png?fit=2282%2C1774&ssl=1)
![](https://i2.wp.com/www.maxairtech.com/wp-content/uploads/gow2.png?fit=1749%2C1080&ssl=1)
![](https://i1.wp.com/www.maxairtech.com/wp-content/uploads/gow1.png?fit=1920%2C1080&ssl=1)
![](https://i2.wp.com/www.maxairtech.com/wp-content/uploads/Screenshot-2024-02-26-at-11.02.00 AM.png?fit=734%2C688&ssl=1)

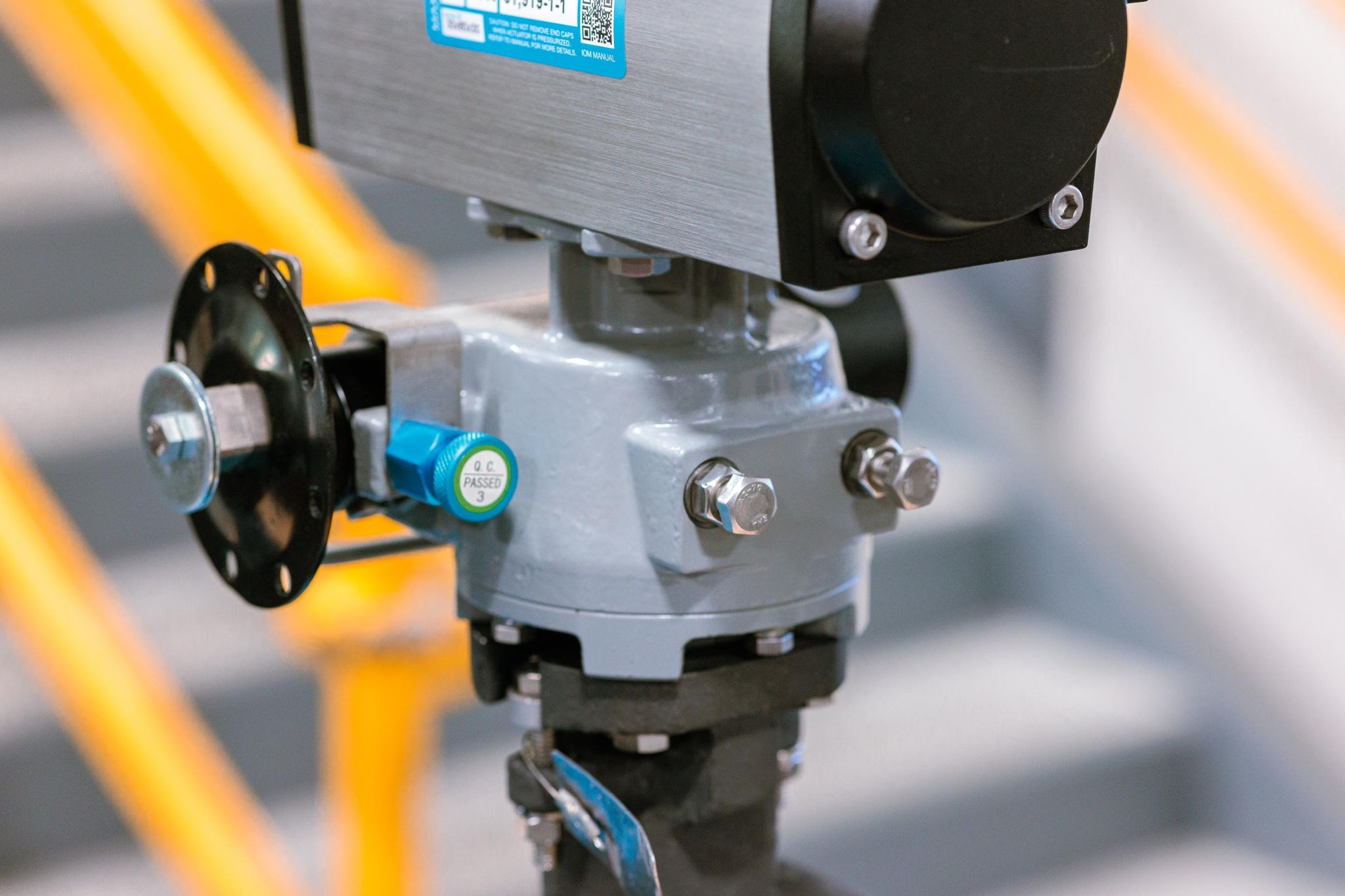

The images show our Declutchable Gear Operator
and details the Block & Bleed feature.
![](https://i1.wp.com/www.maxairtech.com/wp-content/uploads/1663955729324.jpeg?fit=2048%2C1365&ssl=1)
Max-Air Technology is here to support your flow control needs. If you need override, failsafe solutions, etc., we have you covered!
