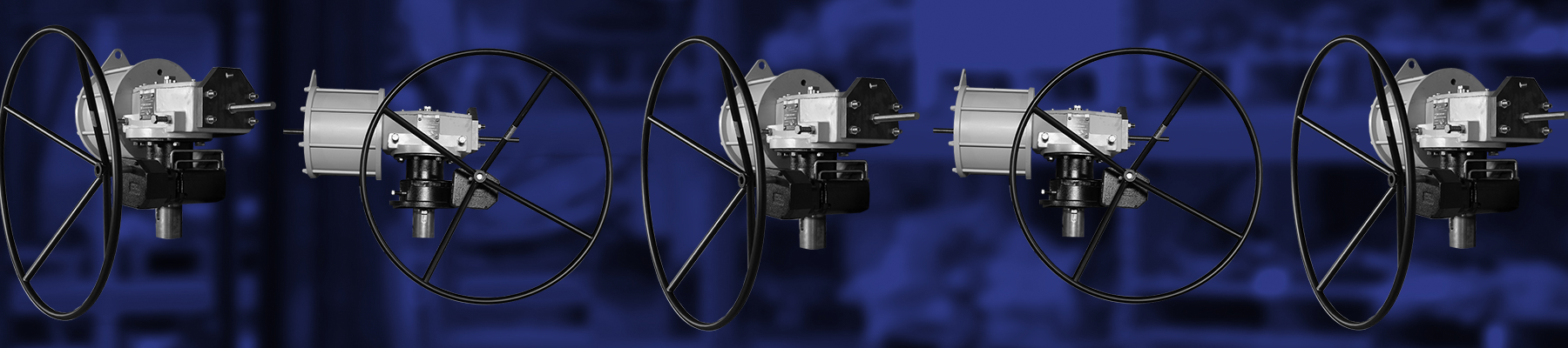

This Max-Air SHD series double acting scotch yoke actuator is equipped with custom extended travel stops to allow for travel adjustment beyond the standard + or – 6° in each direction. These extended travel stops allow for infinite adjustment between 0° and 90°. Also, a heavy duty sandwich style declutch gear operator w/ handwheel was specified by the customer and Max-Air installed & tested the assembly w/ a custom coupling.
![](https://i1.wp.com/www.maxairtech.com/wp-content/uploads/55-2.png?fit=750%2C761&ssl=1)
![](https://i2.wp.com/www.maxairtech.com/wp-content/uploads/55-1.png?fit=750%2C761&ssl=1)
